Automotive tablet oscilloscope for troubleshooting automotive electrical problems
CarScope VISO is the newest member of CarScope’s popular family of automotive diagnostic oscilloscopes. It is dedicated professional automotive component tester with touch screen color display and it is the single solution to all your engine analysis needs. The VISO automotive digital storage oscilloscope provides you with affordable performance in a compact design. It’s packed with useful features such as: USB connectivity, component tester with built-in preset configurations, primary and secondary ignition capabilities with presets, dual graphing voltmeter, frequency counter and context sensitive help menu. The VISO oscilloscope helps you get more done, in less time.
Start with the base kit and add more power and functionality to suit your needs. The base kit includes the embedded firmware and measurement leads for the 2-Channel oscilloscope and for the digital voltmeters.
!Important: CarScope VISO is free from USB connectivity problems, common for most automotive oscilloscopes.
!Important: CarScope VISO is free from USB connectivity problems, common for most automotive oscilloscopes.
Key performance specifications:
-
2-channel oscilloscope
-
Each channel has its own independent ADC
-
Advanced hardware trigger
-
8k point record length on all channels
-
Up to 20 MS/s sample rate on each channel
CarScope VISO demonstration program could be found in our Download section!
|

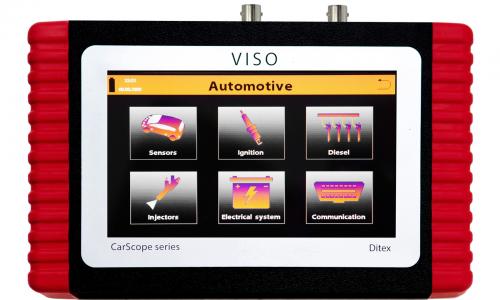

• 7 inch WVGA (800X480), Active TFT Color Display
|
• Multilingual user interface
|
|
• Capacitive touch screen
|
• Zoom function
|
|
• Specially designed real-time embedded system
|
• Intuitive operation
|
|
• Ultra fast boot time
|
• Battery-powered, handheld oscilloscope
|
|
• Embedded information system
|
• Smart power management system
|
|
• Built-in automatic pre-set measurement configurations
|
• Internal Micro SD card to save and review measurements
|
|
• Built-in context-sensitive help
|
• PC connectivity via USB port
|
|
• Peak detect mode for viewing narrow pulses spaced far apart in time
|
• Store, share and recall waveforms as a BMP file or VISO’s specific output format
|
|
Computer control system
|
Real-time embedded system
|
|
Channels
|
2
|
|
Maximum sampling rate
|
2 independent 20 MS/s ADCs
|
|
Bandwidth
|
2MHz
|
|
Oscilloscope Inputs
|
2 Inputs; ±20 Volts; 1MΩ in parallel with 30 pF
|
|
Secondary Ignition Inputs
|
Any input channel (capacitive pick-up clamp)
|
|
Primary Ignition Inputs
|
Any input channel (20:1 attenuator)
|
|
Input ranges (full scale)
|
±0.5V; ±1V; ±2V; ±5V; ±10V; ±20V (real)
|
|
Input Overload Protection
|
±200V DC+AC peak
|
|
Trigger Source
|
Channel 1 and Channel 2
|
|
Trigger Type
|
Automatic, Single Shot, None
|
|
Trigger Edge
|
Rising edge, Falling edge
|
|
Vertical Resolution
|
8 bit
|
|
Hardware memory buffers
|
32,000 bytes RAM buffer per channel
|
|
Record length
|
8k point record length on all channels
|
|
Horizontal zoom
|
Horizontally expand or compress a live or stopped waveform
|
|
Peak Detect acquisition mode
|
User selectable
|
|
Sample acquisition mode
|
Sample data only
|
|
Connectivity
|
USB 2.0 device port for easy connection to a PC
|
|
Data storage
|
8GB internal SD card
|
|
Bandwidth
|
2MHz
|
|
Power source
|
Lithium Ion Battery - 18650 cell - 2600mAh
|
|
Total Power Consumption
|
400mA max
|
|
Average Battery Life
|
4 hours
|
|
Battery charging voltage range
|
4.75V to 5.5V DC
|
|
Battery charging adapter
|
5V / 2.0 Amp DC out, 5.5mm x 2.1mm, Positive Center
|
|
Dimensions - main device
|
Approximately 250mm (L) x 175mm (W) x 40mm (H)
|
|
Weight (main unit)
|
Approximately 0.4kg
|
|
Weight (basic set)
|
Approximately 0.95kg
|
- 2-Channel Oscilloscope
CarScope VISO is a universal oscilloscope and it is not bounded to any brand or any model car.
- Comprehensive Engine Analysis
CarScope VISO is the single solution to all your engine analysis needs. It’s designed with excellent opportunities to test all types of sensors and actuators used in modern cars.
- Ignition Analyzer
CarScope VISO is a high efficiency of automotive engine analyzer. It is specially designed for automobile test and analysis of ignition systems. Ignition waveform test function can be used to test the primary and secondary ignitions. Their waveforms are displayed in a single cylinder waveform and a parade waveform. It can be used to test all kinds of ignition systems. It can be used to test ignition systems with or without distributor as well as Coil-on-Plug (COP) systems.
- Engine Analyzer
With the additional Pressure Pulse Sensor, CarScope VISO can be used for indirect checking of the engine's mechanical condition.

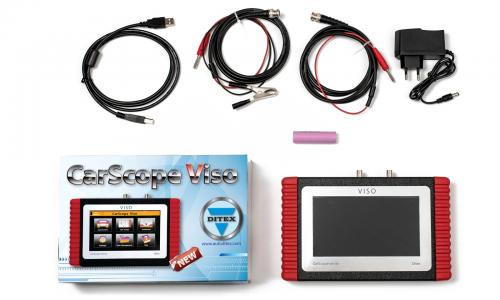

- CarScope VISO - main hardware unit;
- Universal main probe – 1 piece;
- Universal probe – 1 piece;
- 18650 Li-ion Cell Battery 2600mAh;
- AC coupling adapter 1:1;
- 5V/2A DC Wall Power Adapter - 5.5mm x 2.1mm plug;
- USB 2.0 Cable Type A Male to Type B Male (optional) - this is a standard issue USB 2.0 cable.
This is the most common A to B Male/Male type peripheral cable, the kind that’s usually used for printers.
