Common Rail R - L meter (CRLR300)

Warrantly terms

Information about our warranty here

If you have further questions,
please don't hesitate to contact us

R-L meter to measure the resistance and inductance of various valves, injectors and solenoids

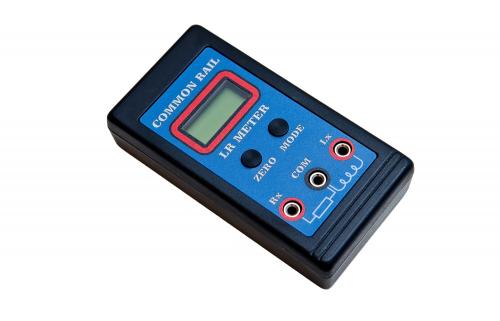

Ditex Common Rail R-L meter device is used to measure the electrical parameters – resistance and inductance of valves, injectors and solenoids. This tool is suitable for all Common Rail systems including Bosch, Delphi, Denso and Siemens. It is used for more advanced diagnostic on individual electromechanical components by measuring their electrical parameters. To measure the desired parameter of a Common Rail actuator there is no need to remove the component from the electrical circuit. Only one of the two wires to the solenoid actuator must be disconnected before measurement.
Diagnosis of Common Rail solenoid actuators is extremely difficult without the use of this specialized R-L tester, because it is impossible to use an ordinary multimeter for this purpose.

  • Hand held Common Rail component tester
  • Identifies internal electrical faults within Common Rail solenoid actuators
  • On-vehicle testing - prevents need for complete component removal and refit
  • Compatible with cars and heavy duty vehicles
  • High accuracy measurements
  • Simple operation – only two buttons for all functions
  • Automatic detection of Resistance and Inductance ranges
  • Backlit LCD for easy reading under dark light
  • Full function protection
  • Manual zero display adjust
  • Over range indication
Resolution
10milliohm
Reading cycle
about 1 per second
L mode operation range
10uH-10mH
R mode operation range
0.01 ohm - 10 ohm
Power supply
8V-30V from car battery or other power source
Power consumption
0.5A max
Measurement accuracy
1%
Low supply voltage indication
below 8V DC
High supply voltage indication
over 30V DC
Display
8x2 LCD display with backlight
Dimensions
130mm x 67mm x 29mm
Weight
0.25kg
  • Ground wire resistance measurement
  • Accurate measurement of the glow plugs resistance.
  • LPG and CNG solenoid valves inductance measurement.
  • Connectors contact resistance measurement
  • Measuring electrical resistance of Common Rail solenoid injectors
  • Measuring electrical resistance of Common Rail solenoid valves
  • Measuring electrical resistance of Common Rail solenoids
  • Measuring electrical inductance of Common Rail solenoid injectors
  • Measuring electrical inductance of Common Rail solenoid valves
  • Measuring electrical inductance of Common Rail solenoids
  • Motor winding resistance measurements

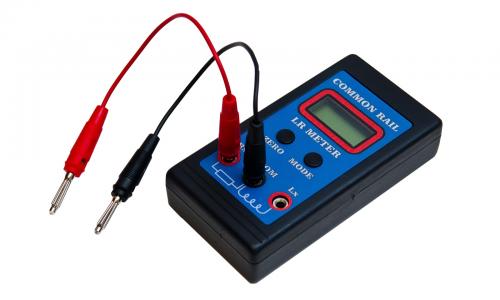

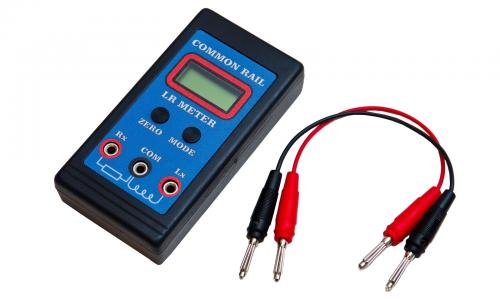

  • Common Rail R-L meter – main unit;
  • 2.5mm DC Plug to crocodile clips power supply cable;
  • 4mm banana plug to 4mm banana plug test cable - red;
  • 4mm banana plug to 4mm banana plug test cable - black.
